4-in-1 ESC Ratings Lie — Here’s What to Check Instead

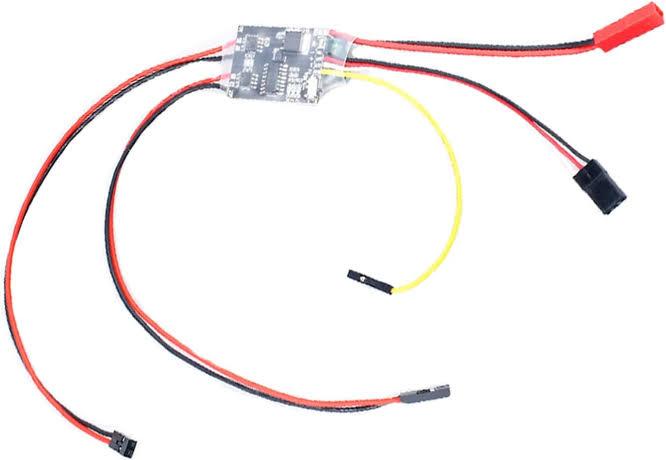

“45A” on an ESC box means almost nothing. It’s a burst figure measured on a bench with a prop that doesn’t exist, at an ambient temperature of 25°C, with airflow from a fan nobody has on their quad. In the air, inside a frame, behind a battery that’s heat-soaking, a 45A ESC is a 30A ESC having a bad day.
That’s why pilots who’ve been through a few meltdowns stop shopping by amp number and start shopping by the things that determine whether the number is real: FET quality, copper, cooling path, and firmware. When you compare a drone esc, the spec table is the start of the conversation, not the end of it.
What the amp rating is really telling you
A 4-in-1 ESC is four independent ESCs on one PCB, sharing one power plane, one capacitor bank, and one heat sink — usually the PCB itself. Ratings are per-channel, but the thermal load is shared. Practical rules:
- Continuous vs burst. Continuous is what it can hold for a whole pack. Burst (usually 10s) is for punch-outs. If a listing only gives one number, assume it’s burst and derate by 30%.
- Stack derating. Four channels at 40A each is 160A total through the input plane and XT60. That’s 12AWG territory and a hard thermal limit. In practice, a “60A” 4-in-1 with no airflow is comfortable around 45A per motor on 6S with 5-inch props.
- Voltage changes everything. The same ESC on 8S pushes the same power through lower current but higher FET switching stress. Boards rated 4–8S should be judged on their 8S behaviour: FET voltage rating (typically 60V or 80V parts), gate driver quality, and input capacitor voltage.
Firmware is now a buying decision
Three families, and the choice affects how the quad flies more than most pilots realise:
| Firmware | Status | Why you’d pick it |
| BLHeli_S | Legacy, but alive via Bluejay | Cheap boards; Bluejay adds RPM filtering and 48kHz PWM |
| BLHeli_32 | Mature, feature-complete, licensed per-unit | Proven, excellent telemetry, huge tuning knowledge base |
| AM32 | Open source, rapidly improving | No licence cost, excellent on 8S/high-KV, actively developed |
AM32 has become the default on newer high-voltage stacks — the T-HOBBY V70A SE 8S runs AM32 on an AT32F421, which is the pattern you’ll see more of. The practical implication: check that your chosen firmware supports bidirectional DShot, because RPM filtering depends on it and RPM filtering is what makes modern tunes possible.
The five things that actually kill ESCs
In rough order of frequency, from the failure pile:
- Blown input capacitor. Low-ESR caps absorb the voltage spikes from long battery leads. Shorten the leads, add a 35V 1000µF (or 63V for 8S) cap at the ESC, and most “mystery” ESC deaths stop.
- Solder joints, not components. Cold joints on motor pads fail under vibration and take the FET with them. 380–400°C, flux, and a proper iron — not a 60W pencil at 300°C.
- Prop strikes on the PCB. A bent prop tip that clips the board shorts phases. Soft-mount the stack, route motor wires clear of the prop disc.
- Brake-on-stop and motor timing abuse. Aggressive brake settings dump energy back into the ESC. If you’re running 8S with low-KV motors, start at 30% startup power and auto timing, then tune up only if you need it.
- Heat soak with no airflow. A stack buried under a battery in a tight frame has no convection path. Give it 5mm of gap and don’t wrap it in foam.
Telemetry: the feature you’ll actually use
- Current sensor (galvanometer): lets you set mAh-based battery alarms instead of voltage alarms, which is the single biggest upgrade to your battery health and flight planning. Verify the scale factor in Betaflight before trusting it.
- ESC temperature: catches a blocked cooling path before it becomes a fire.
- Per-motor RPM: required for RPM filtering. Without it, you’re tuning blind on anything above 5-inch.
Connector vs solder, and the wiring tax
Plug-in FC/ESC connections (Betaflight-standard 8-pin) reduce 40 solder joints to 2 connectors. That’s not laziness — it’s fewer failure points, easier field swaps, and cleaner builds. The trade-off is that you must check pinout compatibility between FC and ESC, because “standard” has drifted across manufacturers.
Wire gauge: 14AWG for 5-inch 6S, 12AWG for 7-inch and 8S, and keep battery leads under 100mm where possible.
Matching the ESC to the build
| Build | Continuous per motor | Voltage | Notes |
| 1S–2S whoop | 5–12A AIO | 1–2S | AIO, not 4-in-1 |
| 3–4″ cinewhoop | 35–45A | 4–6S | Look for good cooling |
| 5″ freestyle 6S | 50–60A | 4–6S | 2207/2306 + tri-blade |
| 5″ racing | 45–55A | 6S | Weight matters more than rating |
| 7″ long range | 60–70A | 6S | 12AWG, big cap |
| 8S / heavy payload | 70A+ | 4–8S | AM32, 63V cap, airflow |
The honest summary: buy one step above what your motor’s peak current demands, put a good capacitor on it, keep it cool, and stop reading the amp number like it’s a promise. The ESC that survives is almost never the one with the biggest print on the box — it’s the one with the best thermal path and the shortest battery leads.
