PCB Etching Explained: Step-by-Step Printed Circuit Board Etching Methods

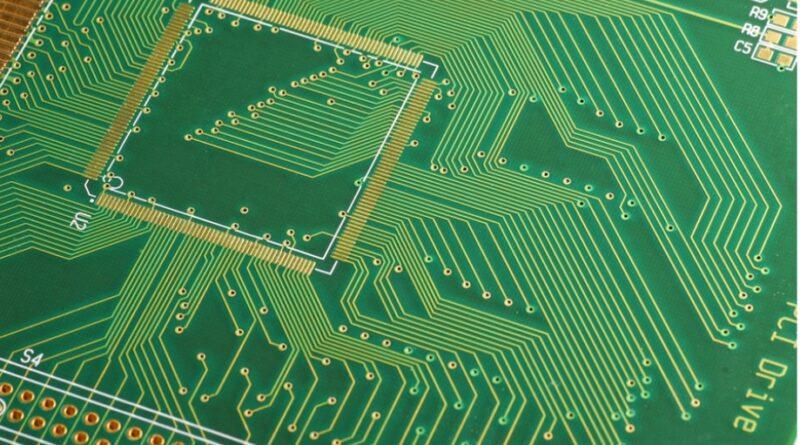

PCB etching is one of the most critical stages in circuit board manufacturing. It transforms a plain copper-clad board into a functional electronic circuit by removing unwanted copper and leaving behind precise conductive paths. Etching Printed Circuit Boards requires accuracy, controlled conditions, and the right technique to ensure reliable performance in electronic devices. This guide explains PCB etching in simple terms and walks through the step-by-step process and common etching methods used today.

What Is PCB Etching?

PCB etching is the chemical or mechanical removal of excess copper from a board that has been patterned with a circuit design. The copper that forms the required traces is protected by a resist layer, while the exposed copper is dissolved using an etching agent or removed through mechanical or plasma-based methods.

In Etching Printed Circuit Boards, precision is essential. If too much copper is removed, traces can break. If too little is removed, short circuits may occur. This makes etching one of the most quality-sensitive steps in PCB production.

Importance of PCB Etching in Electronics

Etching defines the electrical pathways that allow current to flow between components. Without this process, a PCB would not be able to perform its intended function. Proper Etching Printed Circuit Boards ensures:

• Clear and accurate circuit patterns

• Strong signal integrity

• Reduced risk of electrical faults

• Long-term reliability of the board


High-quality etching also improves soldering performance and reduces manufacturing defects.

Step-by-Step PCB Etching Process

1. Cleaning and Surface Preparation

Before etching begins, the copper surface is thoroughly cleaned to remove dirt, grease, and oxidation. This allows the resist layer to bond properly and ensures even copper removal during etching.

2. Applying the Resist Layer

A resist material, usually photoresist, is applied over the copper surface. This layer protects the copper that must remain after etching. The circuit pattern is transferred onto the resist using UV exposure or printing techniques.

3. Developing the Pattern

After exposure, the board is placed in a developer solution. This removes the unwanted portions of the resist, exposing the copper that should be etched away while leaving the desired circuit pattern protected.

4. Etching the Copper

This is the core stage of Etching Printed Circuit Boards. The board is immersed in an etching solution that dissolves the exposed copper. Common etching chemicals include ferric chloride, cupric chloride, and ammonium persulfate.

The etching solution reacts with the copper surface and removes it gradually. Careful monitoring is required to avoid over-etching or under-etching.

5. Removing the Resist

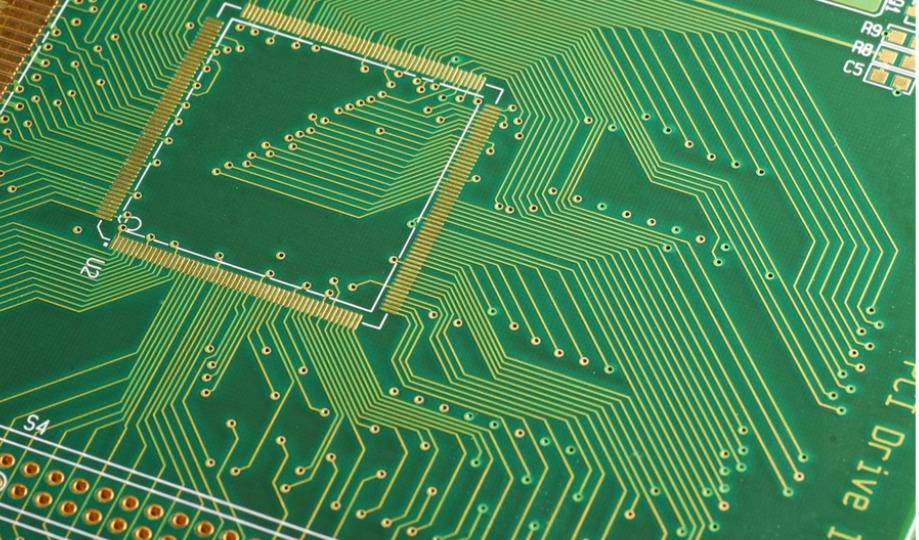

Once the copper has been etched to form the circuit pattern, the remaining resist is stripped away. This reveals the final copper traces that make up the circuit design.

6. Washing and Drying

The board is rinsed with clean water to stop the chemical reaction and remove residue. It is then dried and prepared for additional processes such as drilling, solder mask application, and component assembly.

Common PCB Etching Methods

Wet Chemical Etching

Wet etching is the most widely used method in Etching Printed Circuit Boards. It involves using liquid chemicals to dissolve copper from the board.

Advantages:

• Low cost

• Easy to control

• Suitable for most PCB designs


Disadvantages:

• Produces chemical waste

• Can cause undercutting if not properly managed


Dry Etching (Plasma Etching)

Dry etching uses plasma or reactive gases instead of liquid chemicals. It is commonly used for high-precision and fine-line circuits.

Advantages:

• High accuracy

• Cleaner process

• Ideal for advanced electronics


Disadvantages:

• Higher equipment cost

• Requires specialized facilities


Mechanical Etching (Milling)

Mechanical etching removes copper using cutting tools or CNC machines. It is mainly used for prototypes and small production runs.

Advantages:

• No chemical handling

• Quick for small jobs

• Good for design testing


Disadvantages:

• Limited precision

• Tool wear affects trace quality


Factors That Affect Etching Quality

Several factors influence the success of Etching Printed Circuit Boards:

• Etchant strength: Strong solutions work faster but can damage fine traces.

• Temperature: Higher temperatures increase reaction speed but reduce control.

• Time: Over-etching can thin or destroy copper paths.

• Agitation: Proper movement of the solution ensures uniform copper removal.


Maintaining balance among these factors is essential for producing consistent, defect-free PCBs.

Safety and Environmental Considerations

Etching chemicals can be hazardous if not handled properly. Protective gloves, eye protection, and ventilation are necessary during the process. Waste etchants must be disposed of responsibly to avoid environmental damage.

Modern Etching Printed Circuit Boards methods increasingly focus on sustainability. Recycling etching solutions and using eco-friendly chemicals helps reduce pollution and production costs.

Applications of PCB Etching

PCB etching is used in nearly every electronic product, including:

• Mobile phones

• Computers and laptops

• Automotive control systems

• Medical equipment

• Industrial machinery


All these devices depend on accurate Etching Printed Circuit Boards for proper operation.

Future Developments in PCB Etching

As electronic devices become smaller and more complex, PCB etching methods continue to improve. Laser-assisted etching and ultra-fine plasma etching are being developed to support high-density interconnect (HDI) boards and microelectronics.

Automation and digital monitoring systems are also helping manufacturers improve consistency and reduce defects in Etching Printed Circuit Boards.

Conclusion

PCB etching is a vital process that converts copper-coated boards into precise electronic circuits. From surface preparation to final washing, every step plays a role in achieving clean and reliable traces. With techniques ranging from wet chemical etching to advanced plasma methods, manufacturers can choose the best approach for their design needs.

Etching Printed Circuit Boards remains at the heart of electronics manufacturing and will continue to evolve as technology advances, enabling smaller, faster, and more powerful electronic systems.
